Products

Vulcan provides an eco-friendly water treatment system which protects your water pipes and equipment prevents scale and rust. The method is based on the Vulcan-Impulse-Technology and treats your water without applying any chemicals or salt. Special electronic impulses change the crystallization process of the calcium in hard water, causing the particles to lose their ability to stick to surfaces.

Product sizes from ½″ up to 40″ pipe diameter

Vulcan is a customized solution for your individual needs. The various product lines of Vulcan solve problems in residential use, commercial applications and in industrial settings.

Vulcan Product Lines

RESIDENTIAL LINE

½” until 2″ pipes

COMMERCIAL LINE

½” until 6″ pipes

INDUSTRIAL LINE

4½” until 40″ pipes

Vulcan 3000Vulcan S10Vulcan S150
Vulcan 5000Vulcan S25Vulcan S250
 Vulcan S50Vulcan S350
 Vulcan S100Vulcan S500
  Vulcan X-Pro 1
  Vulcan X-Pro 2

Vulcan Anti-Scale System

   No salt or chemicals

   Magnetism-free

   For pipe diameters up to 40″

   Works on every pipe material

   International 10-year warranty

   Quality – Made in Germany

Overview
Pipe Space
You will find more information, photos, videos and downloads on the product page directly. Please choose a model below to see more information.

RESIDENTIAL LINE | Vulcan 3000

Weight:2 kg
Pipe diameter:½” – 1½” (13 – 38 mm)
Max. capacity:3000 l/h (13 gpm)
Voltage:24 V
Wattage:2.0 Watt
Impulse bands:2 x 1 m (2 x 39″)
Band width:10 mm (0.4″)
Dimensions:125/80/30 mm (5.1/3.1/1.2″)
Frequency range:3 – 32 kHz
Required space:~ 250 mm (~10″)
Programs:1

Product details

RESIDENTIAL LINE | Vulcan 5000

Vulcan Anti-Scale System for residential use and small equipment….

Weight:2 kg
Pipe diameter:½” – 2” (13 – 50 mm)
Max. capacity:8000 l/h (35 gpm)
Voltage:24 V
Wattage:2.0 Watt
Impulse bands:2 x 2 m (2 x 79″)
Band width:10 mm (0.4″)
Dimensions:150/90/30 mm (5.9/3.5/1.2″)
Frequency range:3 – 32 kHz
Required space:~ 350 mm (~14″)
Programs:1

Product details



COMMERCIAL LINE | Vulcan S10

Vulcan Anti-Scale System for commercial applications….

Weight:4 kg
Pipe diameter:½” – 3” (13 – 76 mm)
Max. capacity:15 m³/h (65 gpm)
Voltage:24 V
Wattage:2.25 Watt
Impulse bands:2 x 3 m (2 x 118″)
Band width:20 mm (0.8″)
Dimensions:190/120/40 mm (7.5/4.7/1.6″)
Frequency range:3 – 32 kHz
Required space:~ 500 mm (~20″)
Programs:3

Product details

COMMERCIAL LINE | Vulcan S25

Vulcan Anti-Scale System for commercial applications and small industries….

Weight:4 kg
Pipe diameter:2″ – 4” (50 – 100 mm)
Max. capacity:30 m³/h (130 gpm)
Voltage:24 V
Wattage:2.25 Watt
Impulse bands:4 x 3 m (4 x 118″)
Band width:20 mm (0.8″)
Dimensions:200/130/40 mm (7.9/5.1/1.6″)
Frequency range:3 – 32 kHz
Required space:~ 800 mm (~32″)
Programs:5

COMMERCIAL LINE | Vulcan S50

Vulcan Anti-Scale System for commercial applications and small industries…. more

Weight:4 kg
Pipe diameter:3″ – 5” (76 – 125 mm)
Max. capacity:70 m³/h (300 gpm)
Voltage:24 V
Wattage:2.25 Watt
Impulse bands:4 x 4 m (4 x 13′ 2″)
Band width:20 mm (0.8″)
Dimensions:200/130/40 mm (7.9/5.1/1.6″)
Frequency range:3 – 32 kHz
Required space:~ 900 mm (~35″)
Programs:5

Product details

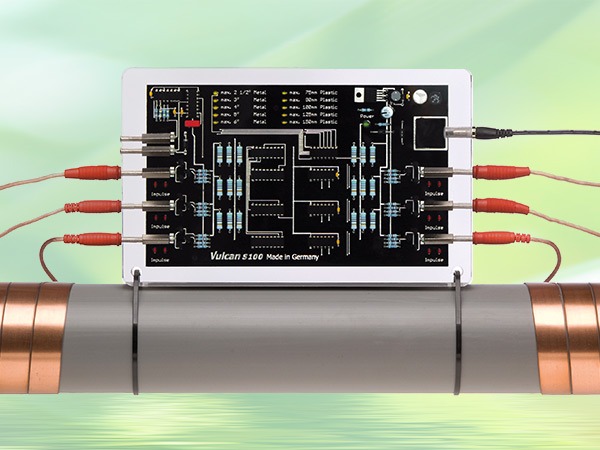

COMMERCIAL LINE | Vulcan S100

Vulcan Anti-Scale System for big commercial applications and industries…. more

Weight:6 kg
Pipe diameter:2½” – 6” (64 – 150 mm)
Max. capacity:120 m³/h (530 gpm)
Voltage:24 V
Wattage:2.5 Watt
Impulse bands:6 x 4 m (6 x 13′ 2″)
Band width:20 mm (0.8″)
Dimensions:230/150/40 mm (9.1/5.9/1.6″)
Frequency range:3 – 32 kHz
Required space:~ 1200 mm (~47″)
Programs:10

Product details



INDUSTRIAL LINE | Vulcan S150

Vulcan Anti-Scale System for big commercial applications and industries….

Weight:6 kg
Pipe diameter:4″ – 8” (100 – 200 mm)
Max. capacity:180 m³/h (790 gpm)
Voltage:24 V
Wattage:2.5 Watt
Impulse bands:6 x 8 m (6 x 26′ 3″)
Band width:20 mm (0.8″)
Dimensions:230/150/40 mm (9.1/5.9/1.6″)
Frequency range:3 – 32 kHz
Required space:~ 1800 mm (~71″)
Programs:10

Product details

INDUSTRIAL LINE | Vulcan S250

Vulcan Anti-Scale System for big commercial applications and industries….

Weight:14 kg
Pipe diameter:4″ – 10” (100 – 250 mm)
Max. capacity:350 m³/h (1540 gpm)
Voltage:24 V
Wattage:2.75 Watt
Impulse bands:8 x 10 m (8 x 32′ 9″)
Band width:20 mm (0.8″)
Dimensions:280/200/50 mm (11.0/7.9/2.0″)
Frequency range:3 – 32 kHz
Required space:~ 2500 mm (~99″)
Programs:10

Product details

INDUSTRIAL LINE | Vulcan S350

Vulcan Anti-Scale System for big commercial applications and industries….

Weight:17 kg
Pipe diameter:6″ – 14” (150 – 350 mm)
Max. capacity:500 m³/h (2200 gpm)
Voltage:24 V
Wattage:2.75 Watt
Impulse bands:8 x 20 m (8 x 65′ 7″)
Band width:20 mm (0.8″)
Dimensions:280/200/50 mm (11.0/7.9/2.0″)
Frequency range:3 – 32 kHz
Required space:~ 3400 mm (~11′ 2″)
Programs:10

Product details

INDUSTRIAL LINE | Vulcan S500

Vulcan Anti-Scale System for big commercial applications and industries….

Weight:21 kg
Pipe diameter:8″ – 20” (200 – 500 mm)
Max. capacity:800 m³/h (3520 gpm)
Voltage:24 V
Wattage:3.25 Watt
Impulse bands:10 x 30 m (10 x 98′ 5″)
Band width:20 mm (0.8″)
Dimensions:310/220/50 mm (12.2/8.7/2.0″)
Frequency range:3 – 32 kHz
Required space:~ 4500 mm (~14′ 9″)
Programs:10

INDUSTRIAL LINE | Vulcan X-Pro 1

Vulcan Anti-Scale System for industries….

Weight:40 kg
Pipe diameter:20″ – 30” (500 – 750 mm)
Voltage:24 V
Wattage:3.75 Watt
Impulse bands:12 x 25 m (12 x 82′)
Band width:40 mm (1.6″)
Dimensions:340/240/50 mm (13.4/9.4/2.0″)
Frequency range:3 – 32 kHz
Required space:~ 5600 mm (~18′ 5″)
Programs:10

Product details

INDUSTRIAL LINE | Vulcan X-Pro 2

Vulcan Anti-Scale System for industries….

Weight:81 kg
Pipe diameter:32″ – 40” (800 – 1000 mm)
Voltage:24 V
Wattage:3.75 Watt
Impulse bands:12 x 50 m (12 x 164′)
Band width:40 mm (1.6″)
Dimensions:340/240/50 mm (13.4/9.4/2.0″)
Frequency range:3 – 32 kHz
Required space:~ 8200 mm (~26′ 11″)
Programs:10
