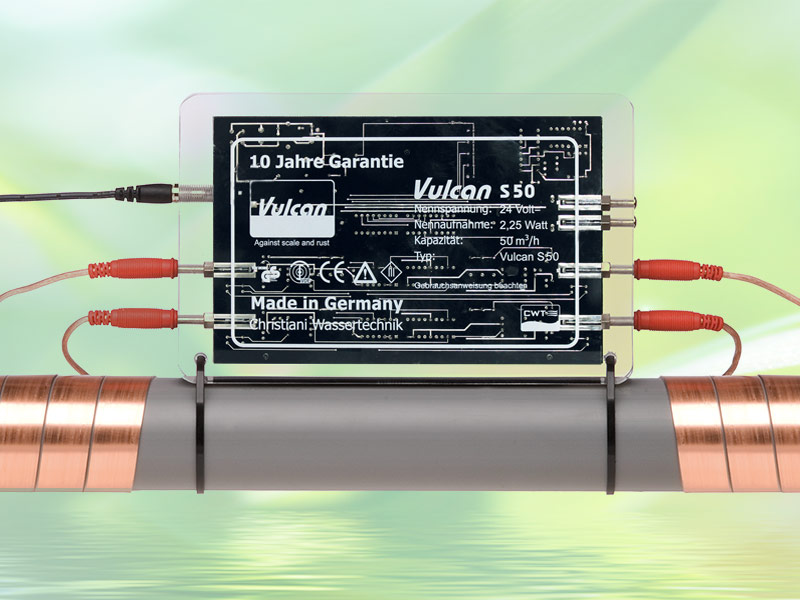

The Anti-Scale System Vulcan S50 treats pipe diameters up to 5″ and have been designed to perfectly meet the requirements of small and medium commercial facilities. This programmable unit allows an individual adjustment according to the material and diameter of the pipes. Appliances and equipment which come in contact with hard water will have a longer life expectancy, when Vulcan is installed. Less time and effort is needed for cleaning, repairs and maintenance, etc.
Installation – without cutting the pipe.
Vulcan Anti-Scale System
The eco-friendly salt-free solutionVulcan is an eco-friendly water treatment system that protects your piping system and appliances against scale deposits and rust. The Vulcan-Impulse-Technology is based on the principle of physical water treatment. Special electronic impulses change the crystallization process of the liquid calcium. This way the hard scale loses its adhesive power. The technology works exclusively with capacitive electric impulses:
NO SALT • NO CHEMICALS • NO MAINTENANCE •
|Pipe diameter:||3″ – 5” (76 – 125 mm)|
|Max. capacity:||70 m³/h (300 gpm)|
|Impulse bands:||4 x 4 m (4 x 13′ 2″)|
|Band width:||20 mm (0.8″)|
|Dimensions:||200/130/40 mm (7.9/5.1/1.6″)|
|Frequency range:||3 – 32 kHz|
|Required space:||~ 900 mm (~35″)|
